Enquire about this boat

Chosen Options

1. HULL   Exterior

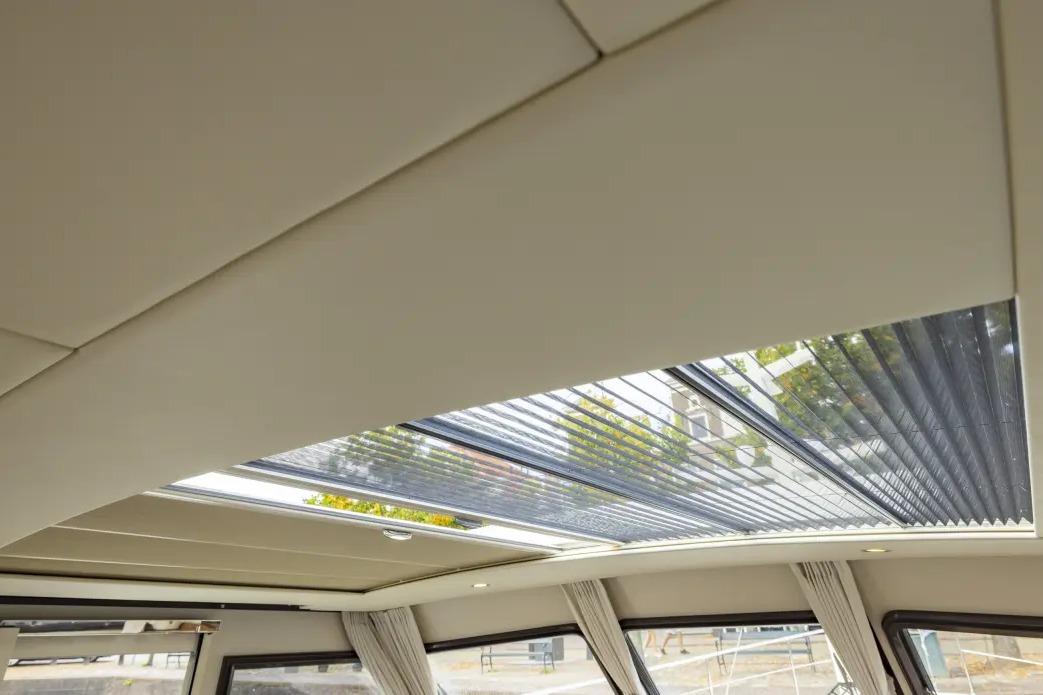

Linssen e-Variodeck® (electric sliding roof) in the saloon

Polished stainless steel hinged side ladder integrated into deck rail

(Port and Starboard)

Stainless steel protection set at side railing entrances, the passages

from gangway to cockpit and stern (5x)

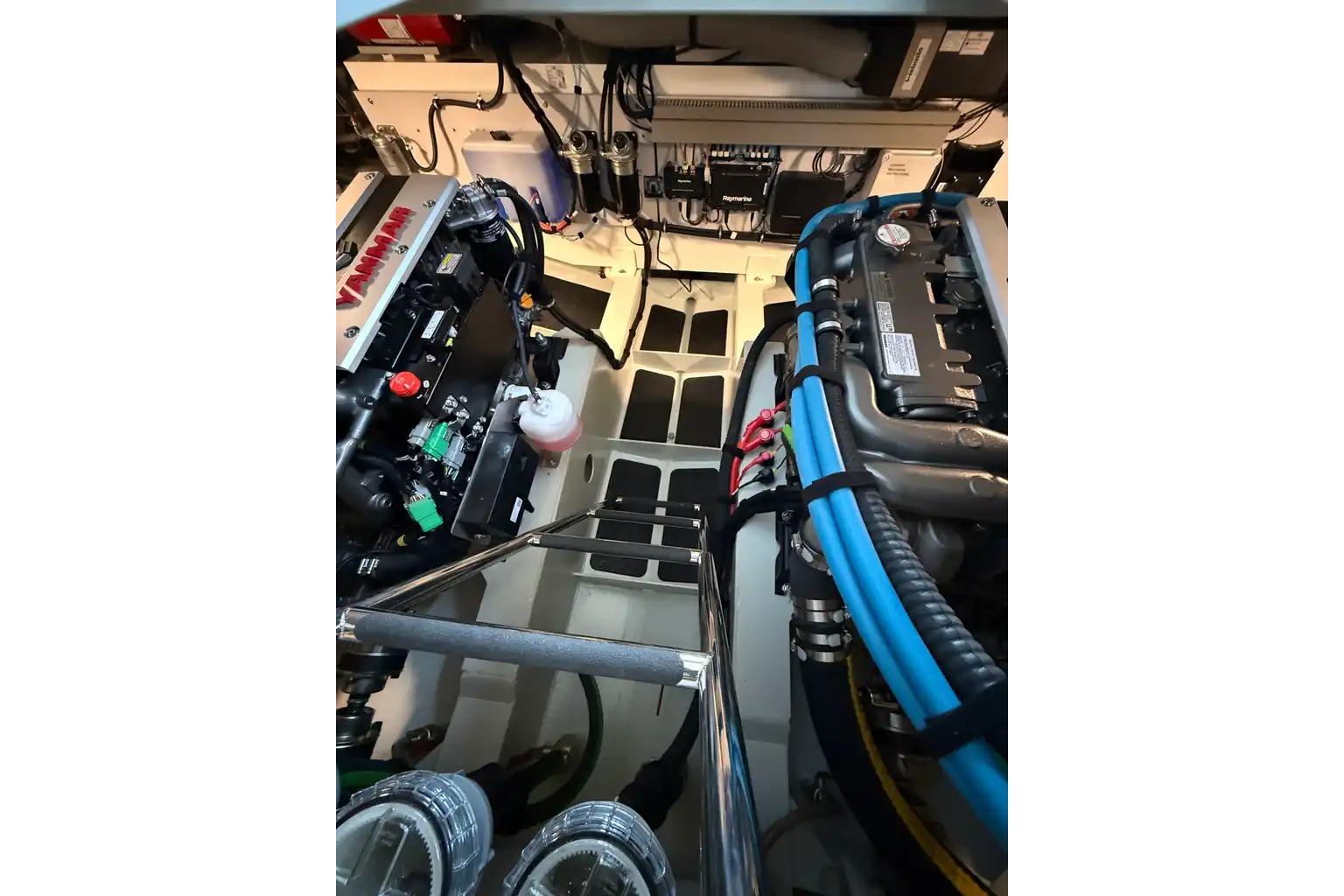

Engine: 2x 4 cyl. Yanmar Diesel, type 4JH110

ZF 25-H / 2,8 : 1

80.9 kW (110 HP), 3200 rpm

Alternator: 2x 125A-12V

Provisions for simple installation of stabilization system to prevent

rolling of the ship. 2 mounting flanges welded in the hull.

Heating (blower) in cockpit, connected to heating system

4 KW heating for day heating will be replaced by a 5.5 kW

version

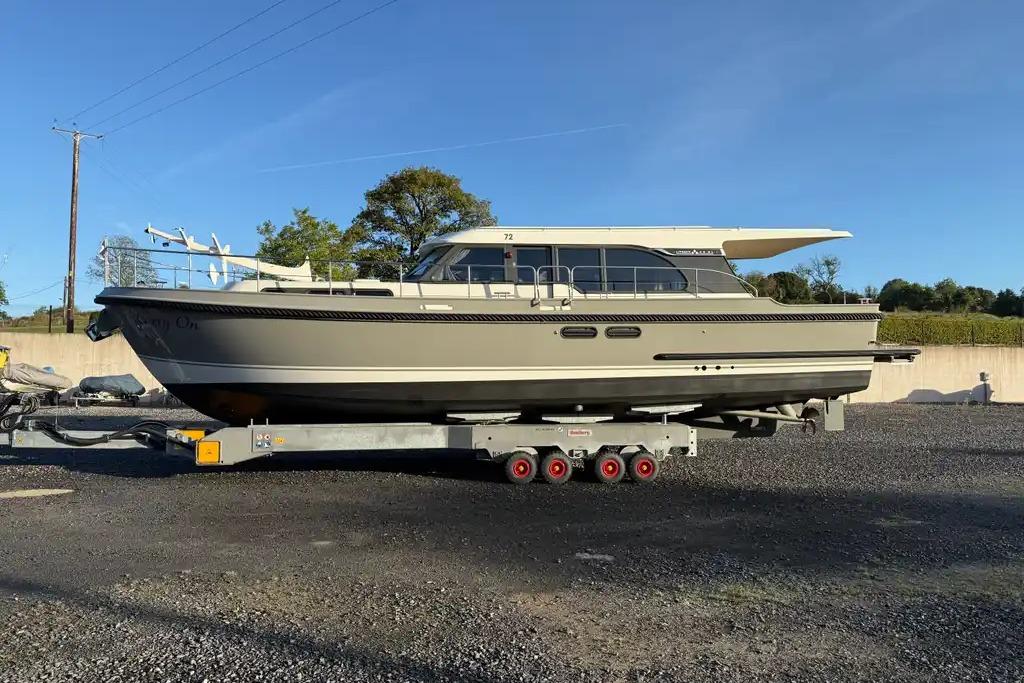

Original Linssen SL colour scheme "Haven Grey":

Hull: Haven Grey

Superstructure: Egg Shell White

Waterline: SL bow-up design,

Egg Shell White

Antifouling: Black

Rope fender: Black

Canvas color: Sunbrella Marine Steel Grey

Glass windows saloon: "Smoke Grey" tinted

Original LINSSEN teak deck on front deck and side decks

3.1 TECHNICAL

Electric stern thruster Sleipner-Side power 24V/150 Kgf (8,8 kW/11,8 HP)

incl. 2 x 170 Ah maintenance-free battery

Twin electronic engine controls at steering position

Yanmar standard fuel filters with water separator and water alarm sensor.

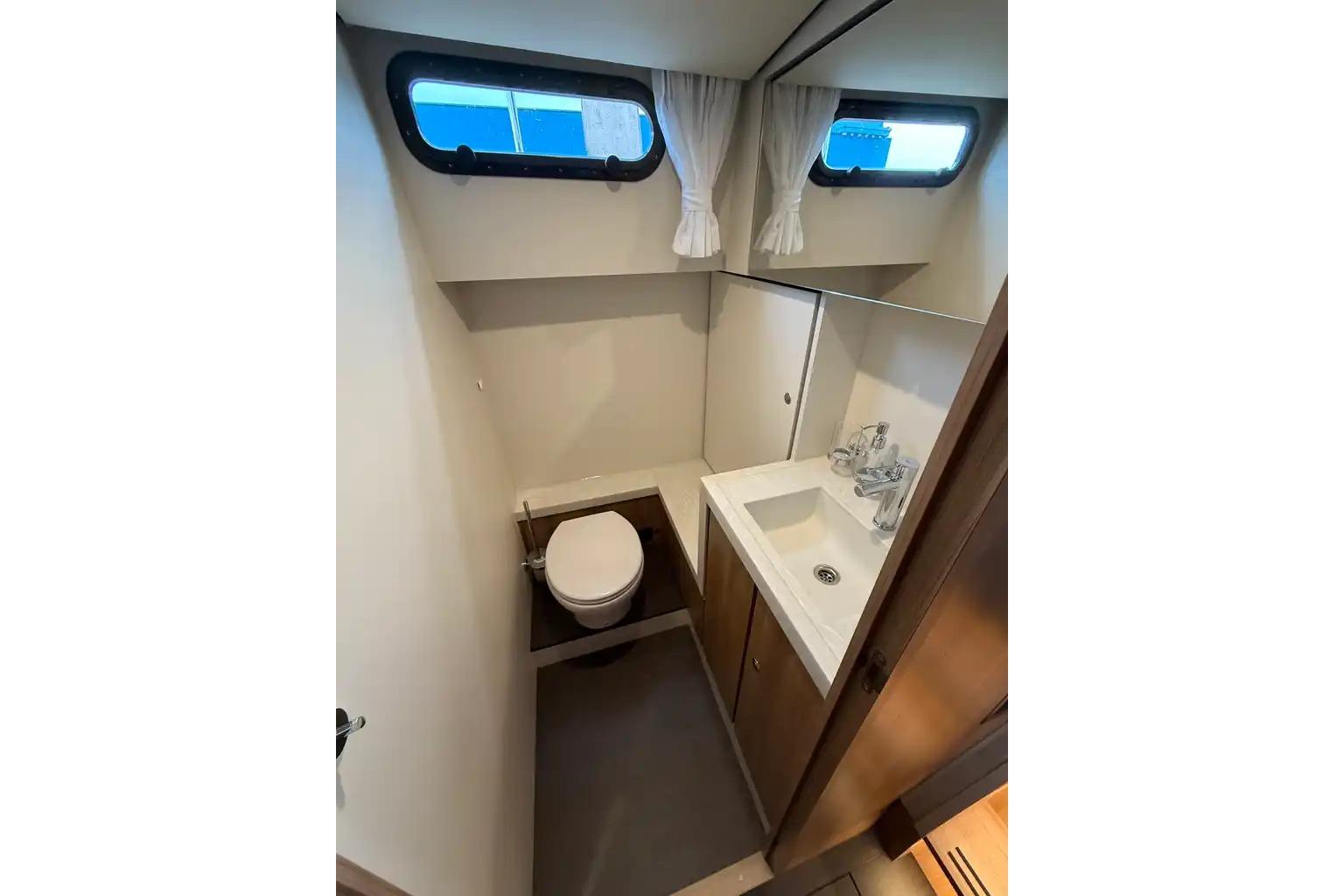

Towel radiator in toilet compartment front cabin electric 230 V.

thermostatically controllable

Provisions for aircon consists of:

- Fitting of cooling pipes incl. fuel tank distributor

- Fitting of power cable chiller + air handlers

- Installation of air ducts, outlets and hoses for air intake/supply

in interior (Incl. 3-way valve for guest cabin)

Chiller air conditioning throughout the ship by compressor with soft

start, total capacity of 27.000 BTU.

Starting circuit 12V. with 2 x maintenance free AGM-battery.

Northern Lights 230V/7 KW, type M773LW3G generator. Intercooling,

continuous power, integrated in shore power connection. Incl. water/gas

separator for exhaust generator.  To control with a control panel with operating hours.

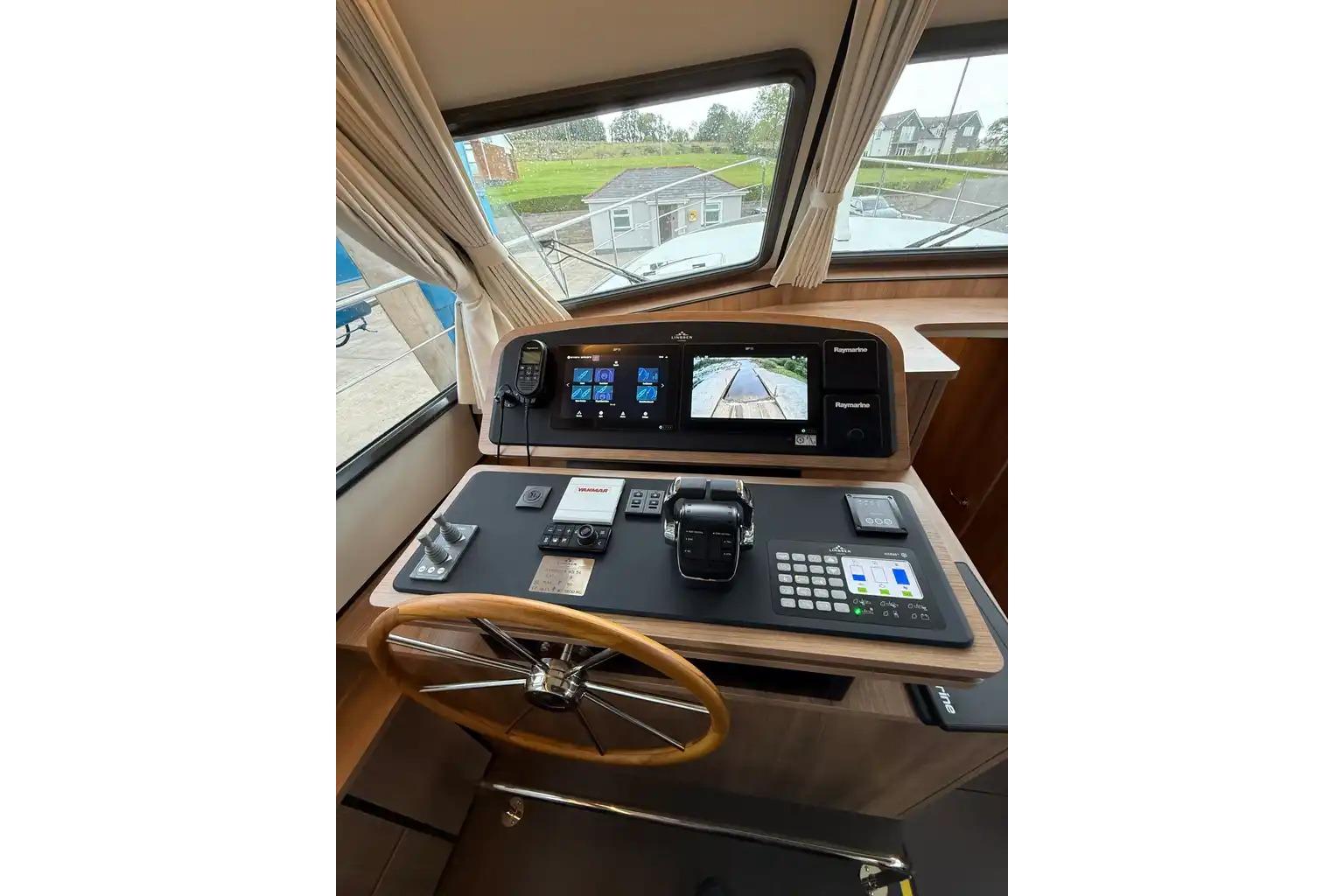

NAVIGATION LAKE PACKAGE

Raymarine autopilot with p70RS display at steering position (incl. course

computer/rudder indicator/compass transducer) with protection in mast

which disengages autopilot during AUTO operation if mast is folded.

Raymarine Axiom+12RV,12" multifunctional colour display with touchscreen

and Wi-Fi at steering position. Including read out from echo sounder,

log and outside water temperature.

Raymarine RMK-10 remote keypad for complete touch control for one

or several display.

Navionics Gold XL9 marine chart type 46XG, West Europe

Raymarine RS150 GPS sensor in mast

1x Raymarine IP day & night net dome video camera at long top

roof for rear view with readout on multifunctional Raymarine display

Remote control for bow (and stern) thruster

Raymarine Ray90 VHF with Class D "Digital Selective Calling" (DSC) at

steering position including antenna in Mast

AIS 700 transponder/receiver (Automatic Identification System) integrated on

radar/chartplotter display.

Attention: MMSI-number required.

Attention: Only in combination with VHF installation

Second Raymarine Axiom+12, 12" multifunctional colour display with

Touch screen and Wi-Fi at steering position. Including read out from

Echo sounder, log and outside water temperature.

Magnesium anodes (for fresh water)

Electric anchor winch 1200W/24V. mounted above deck with integrated

stainless steel anchor rollers and anchor rail with 50m. 10 mm.

anchor chain and 20 Kg. Bruce-anchor

High gloss polished stainless steel Bruce-anchor 20 kg. AISI-316

Extend windscreen wiper installation with synchronous and 3 step

interval function. In the interval mode, the wipers run synchronously

and are self-parking.

Electric mast lowering system, incl. control at steering position.

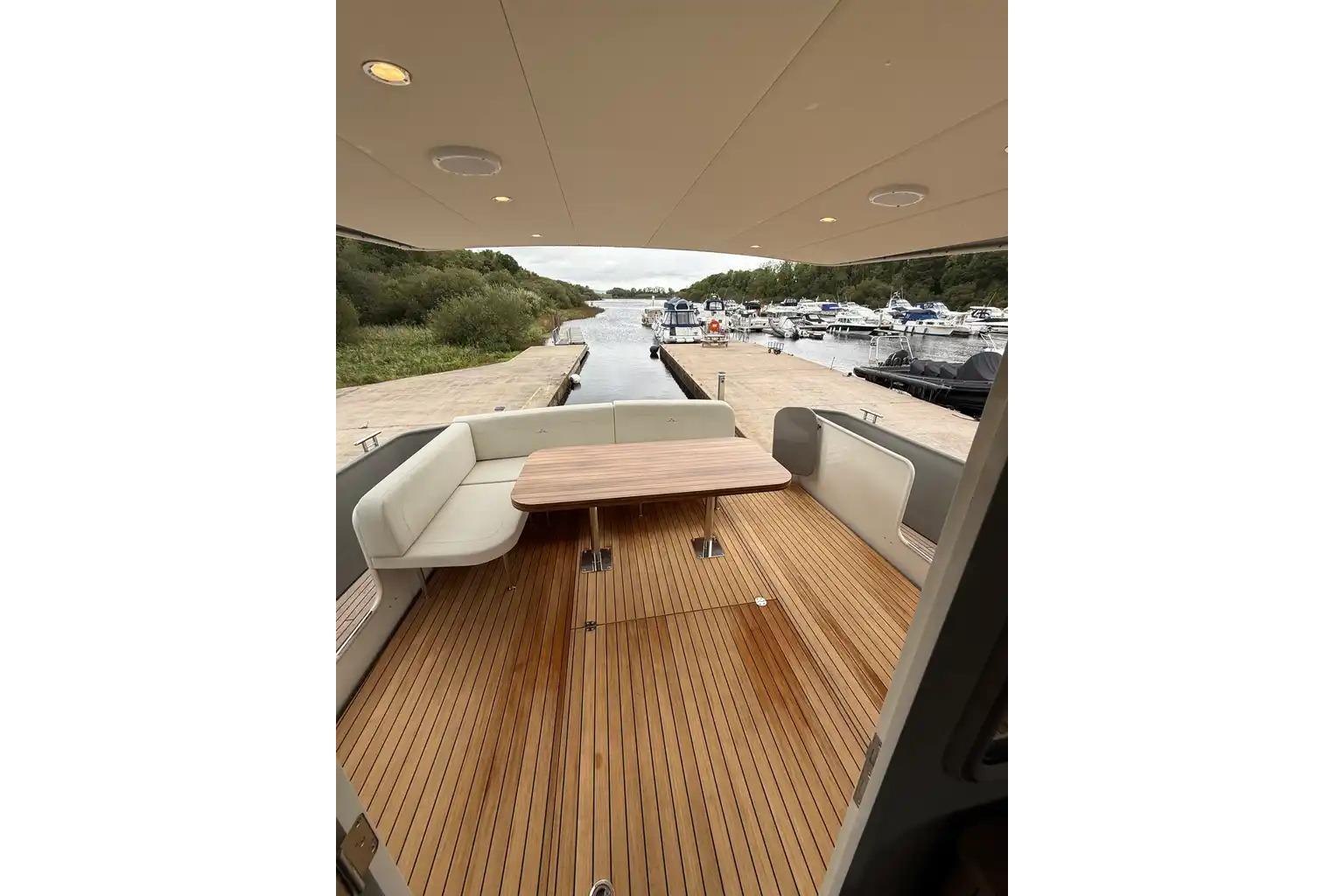

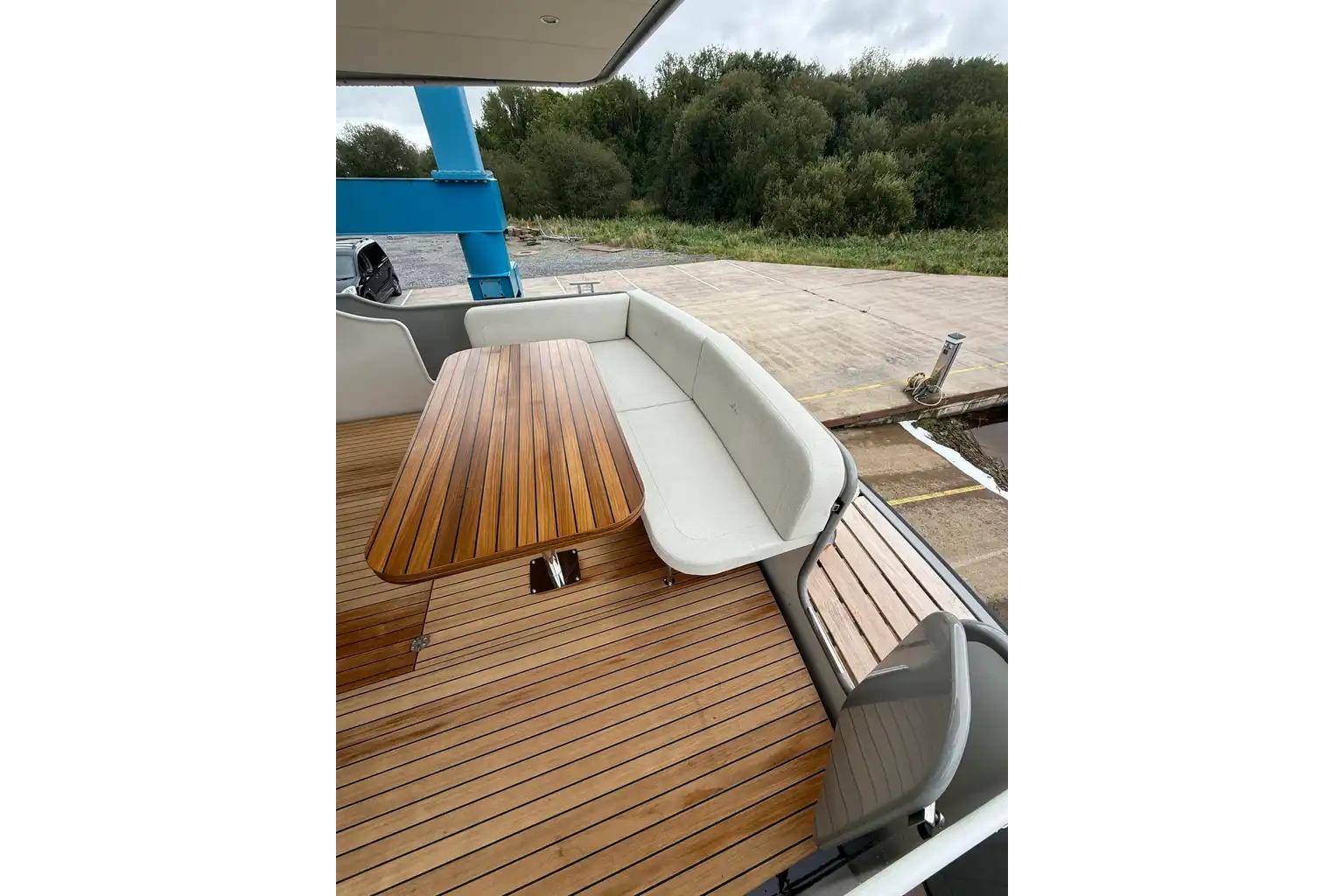

Luxury teak table at settee in cockpit

Teak table with luxurious satin gloss painting in 3 layers

Double-glazed "Smoke grey" tinted windows in the saloon (incl.

entrance doors) with grey thermal insulated profile (Thermic Line). Front

windows in plain glass.

Aluminium fixed Port window in saloon front, with "Smoke Grey"

tinted in (Thermic Line) double glass, incl. grey thermal insulated

profile

Stbd middle window in saloon, finished in double glass (Thermic

Line) incl. grey thermal insulated profile and "Smoke grey "tinted glass

Aluminium fixed SB window in saloon front, with "Smoke Grey" tinted

in (Thermic Line) double glass, incl. grey thermal insulated profile

Luxurious LED reading lights (2x) in the guest cabin

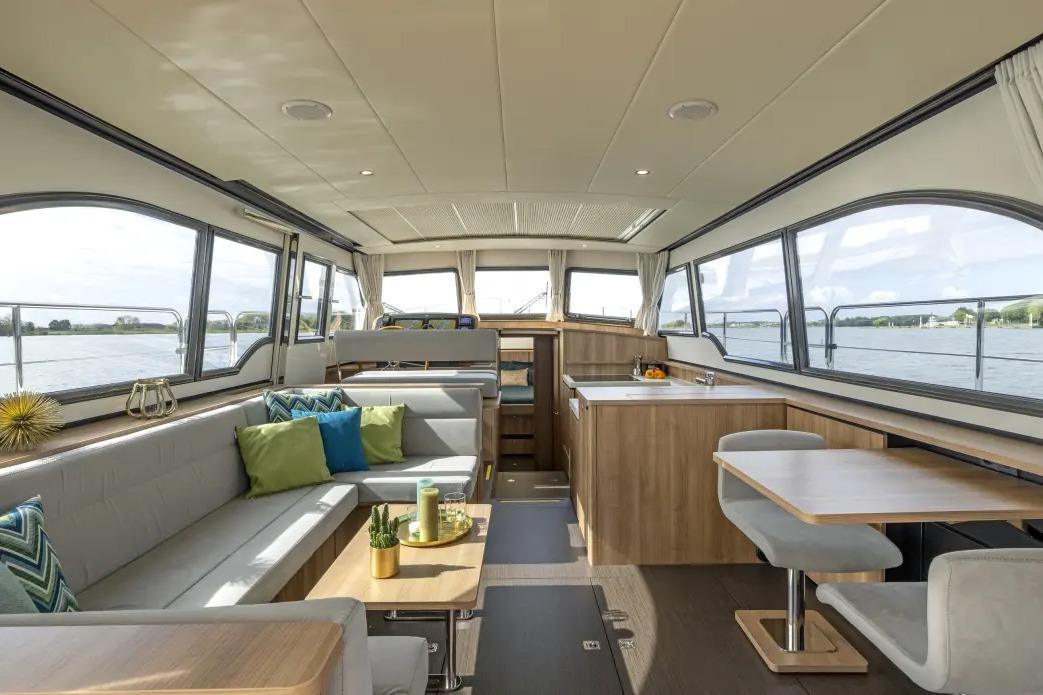

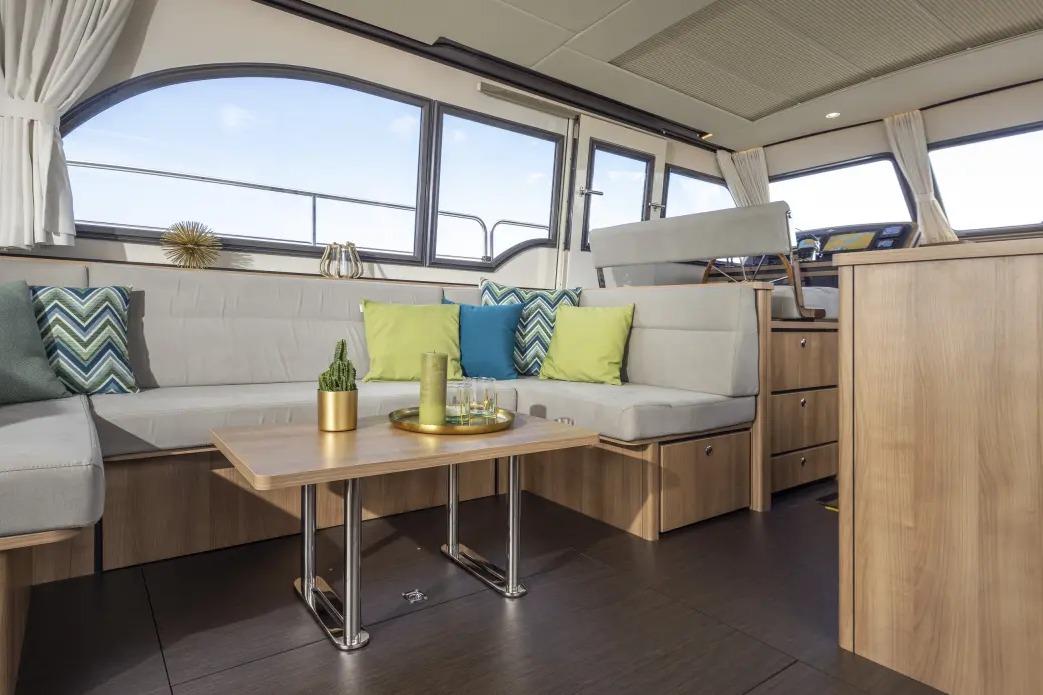

Attractive indirect lighting in saloon

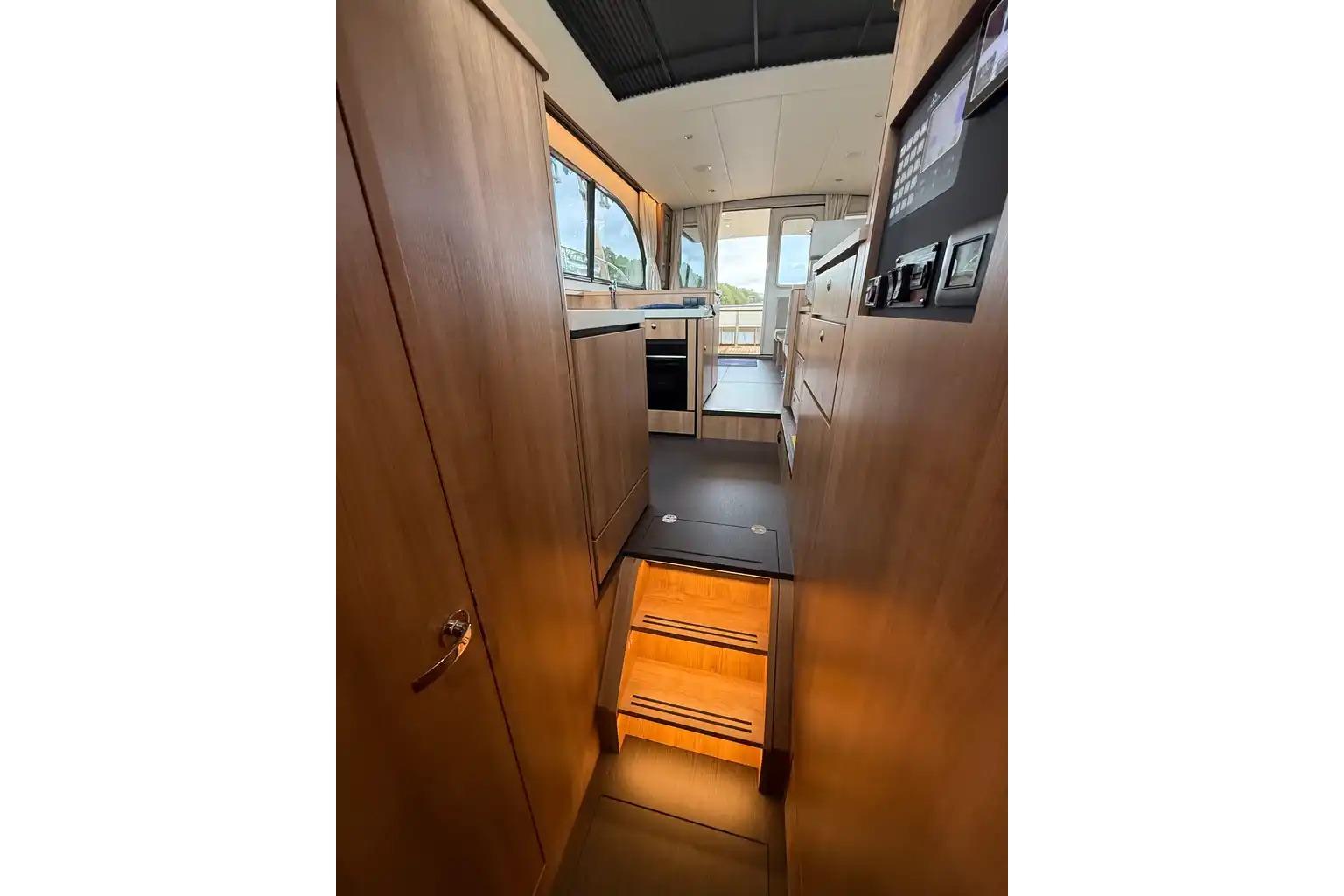

Indirect lighting in all steps of front cabin stairs

USB socket in FC, guest cabin and steering position for charging

mobile equipment.

230 V. socket in the galley

230 V. socket in cockpit on Port-side superstructure, splash resistant

Cooling Tray, 30 litre, built-in at the end face of the rear half

saloon settee

230V. induction hob, stainless steel, with touch control. 1 x 1200 W.

cooking zone, 2 x 1800 W. cooking zone, 1 x 2200 W. cooking

zone

230V. dishwasher (front loader) integrated into galley. Capacity: 6 covers

230V. stainless steel 42 l. microwave/oven/grill combination. Temperature

range 30-250 degrees. 90-1000W microwave power

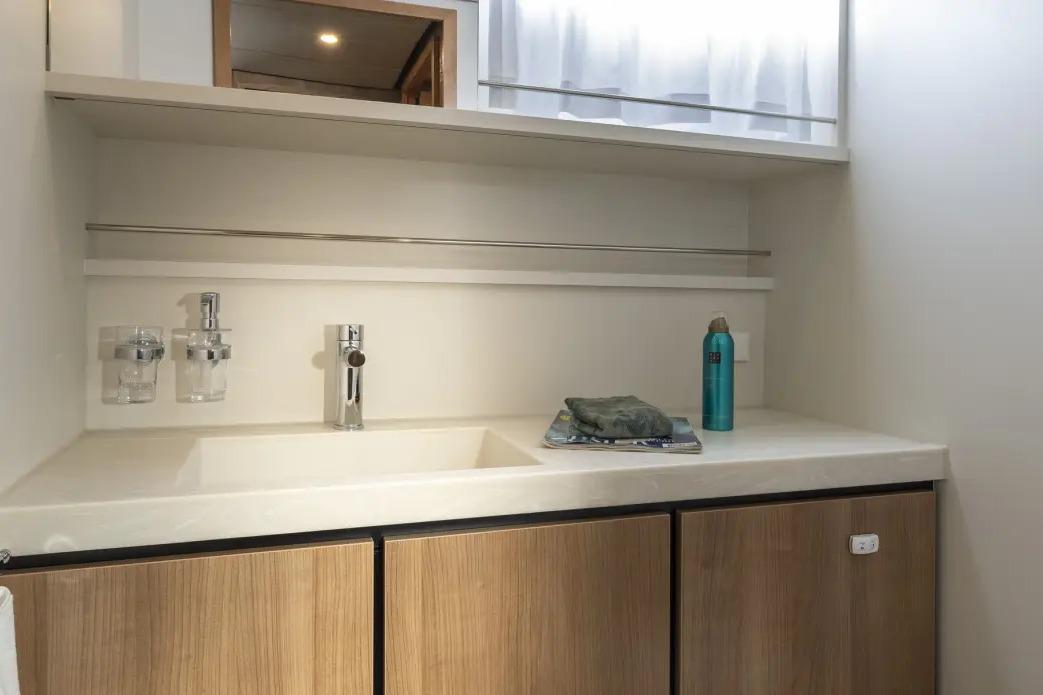

Full-length mirror in the FC toilet compartment at entrance door to

the front cabin

Primary TV connection in saloon STB TV cupboard, incl. extra 230V.

sockets

Supplementary TV connection in front cabin, incl. extra 230V. socket

Glomex TV-antenna on mast, suitable for analogue & digital reception.

Suitable for DVBT-T2 network.

Rotating pop-up TV lift incl. 32'' full HD Smart TV that makes good

use of the free space behind the dinette and positions the TV -

optimally oriented towards the viewer - on the cabinets.

The TV is also in the so-called 'dinette position' so that it is

possible to watch TV from both the saloon couch and the front

dinette couch.

32" (81cm) LED TV with integrated DVB-T & DVB-S tuner in front

cabin, including manual TV lift in cabinet on Starboard side

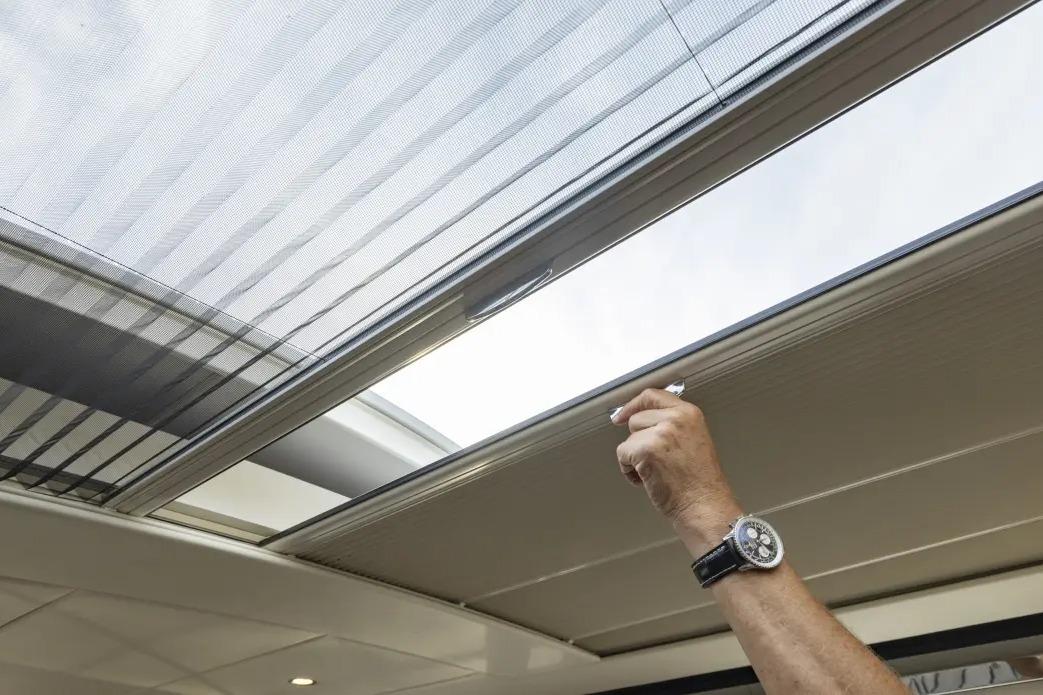

Fly screen integrated e-Variodeck®

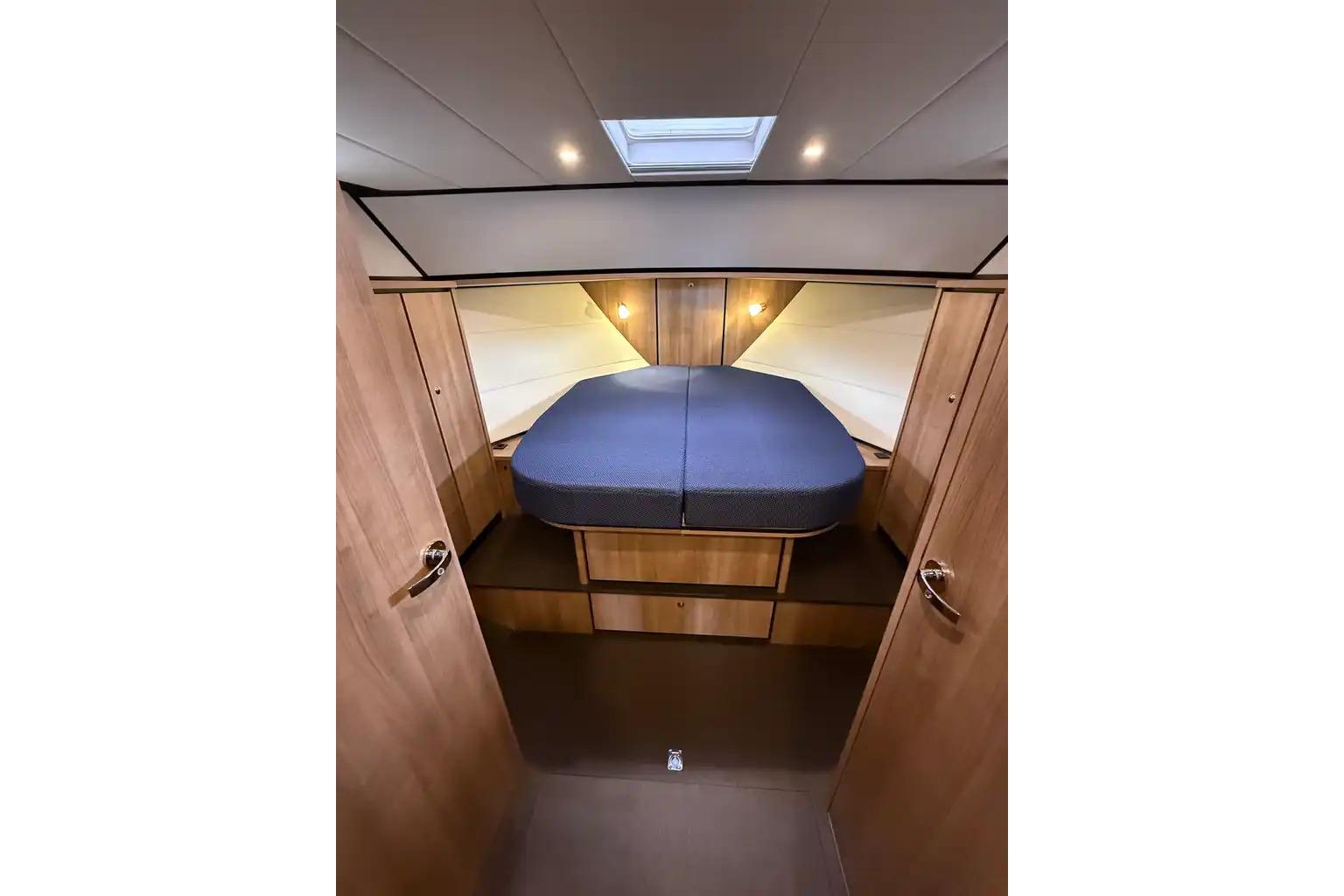

Combined blind/mosquito screens for panorama/escape hatch in forward

cabin deck-head

Combined blind/mosquito screens for cabin and head ventilation/escape

hatch

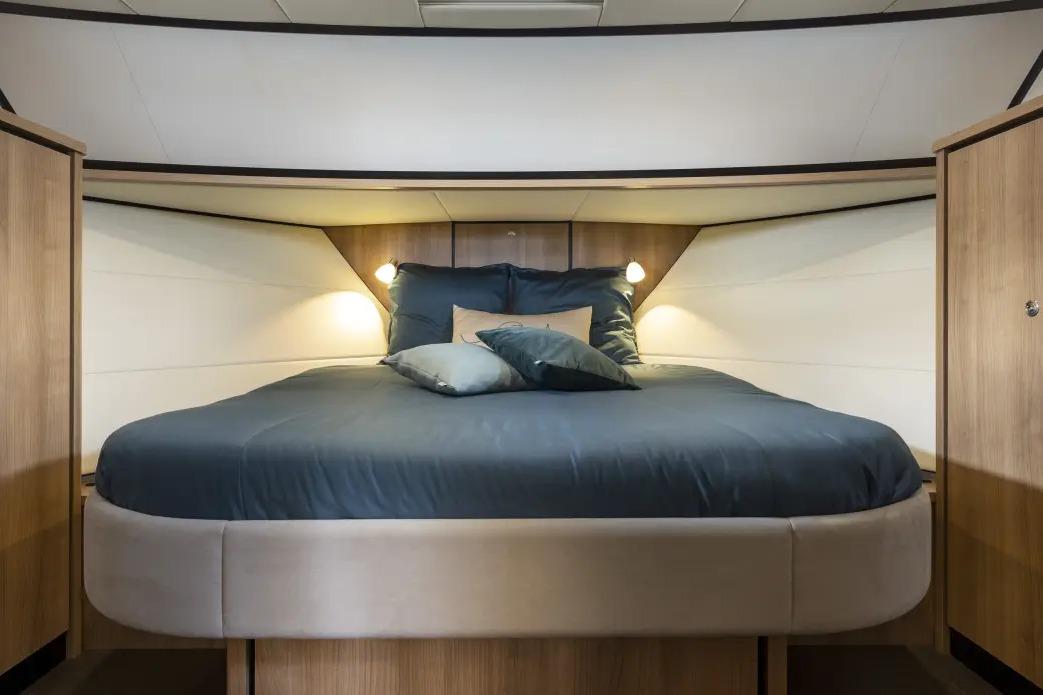

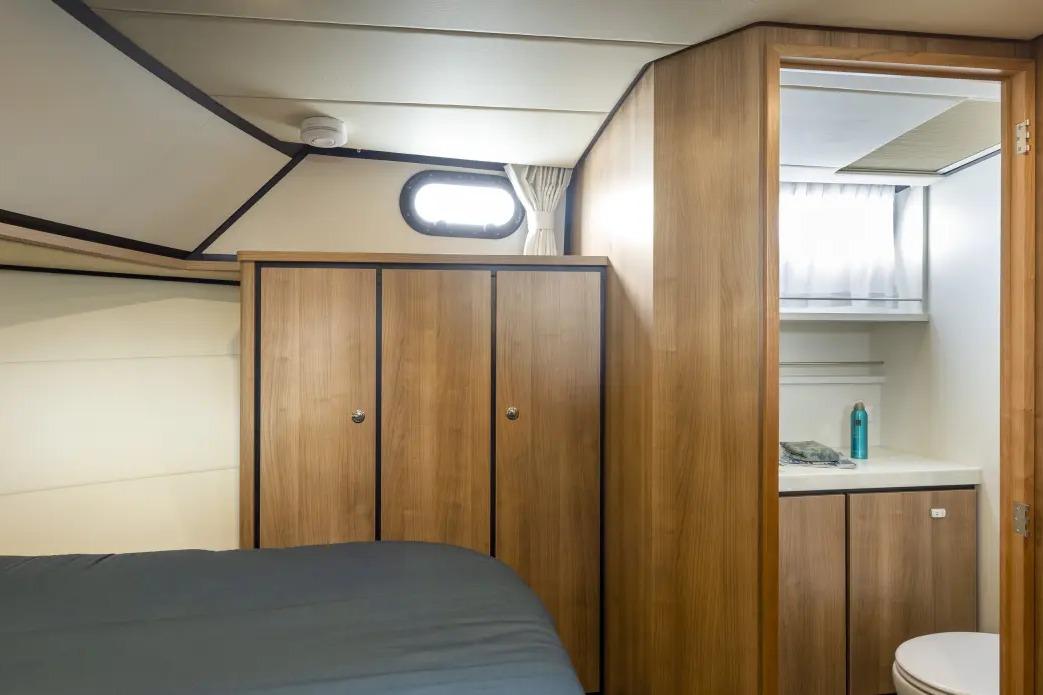

Double Mattress in front cabin type Combi-spring 14 cm.

Interior package consisting of bed linen with 3 accent Sticksel for the entire ship

Interior duvets and pillows set
